Paint Packing Line

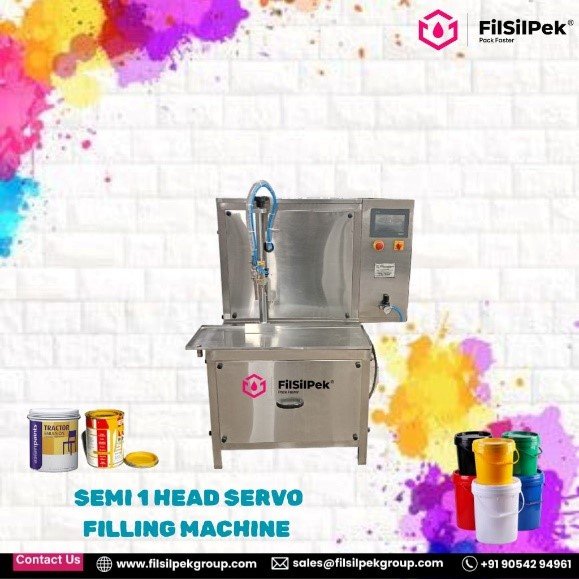

Semi 1 Head Servo Filling Machine
Pack Size : 100 ml to 5 Liters
Output : 10 to 15 Cans/Minute (for 1L)
Accuracy : +/- 0.5% to 1%
Technology : Servo Motor Driven (Gear Pump or Piston) with PLC & HMI Control
Watch Video

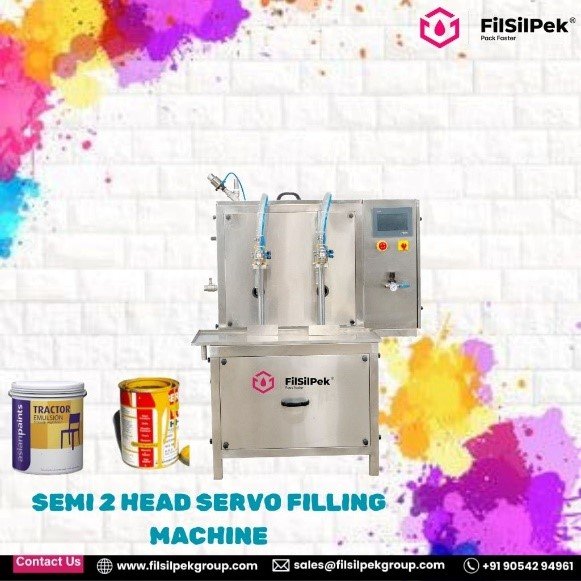

Semi 2 Head Servo Filling Machine
Pack Size : 100 ml to 5 Liters (Adjustable via HMI)
Output : 20 to 40 Bottles/Minute (Depends on operator speed & volume)
Accuracy : +/- 0.5% to 1%
Technology : Servo Motor Driven Piston / Gear Pump with PLC & Touch Screen
Watch Video

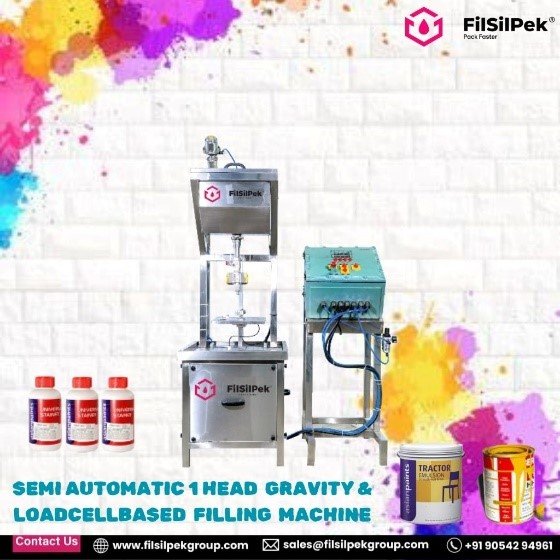

Semi-Automatic 1 Head Gravity & Load Cell Base Filling Machine
Pack Size : 1 Liter to 25 Liters (Adjustable platform)
Output : 3 to 15 Cans/Minute (e.g., ~3-4 CPM for 15L, ~10-15 CPM for 1L)
Accuracy : +/- 0.1% to 0.5% (Net Weight System)
Technology : Gravity Feed with Load Cell Cut-off (Coarse & Fine Flow Control)
Watch Video
Semi-Automatic 2 Head Gravity Filling Machine
Pack Size : 200 ml to 5 Liters
Output : 20 to 40 Bottles/Minute (Depends on volume)
Accuracy : +/- 1% (Time-Based Gravity)
Technology : Pneumatic Gravity Flow (Time Based / Volumetric)
Watch Video

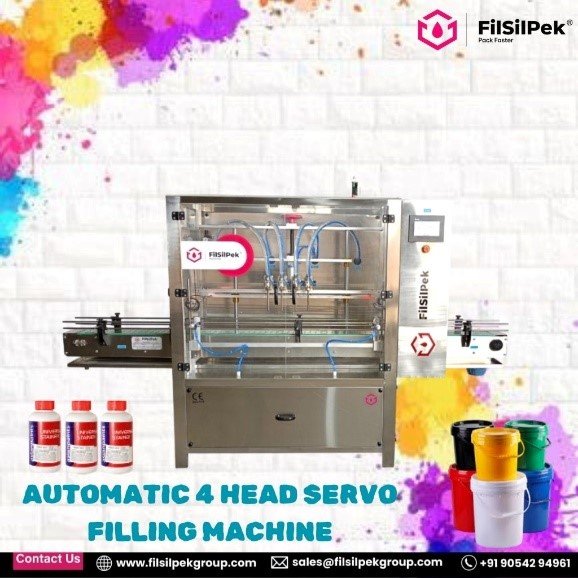

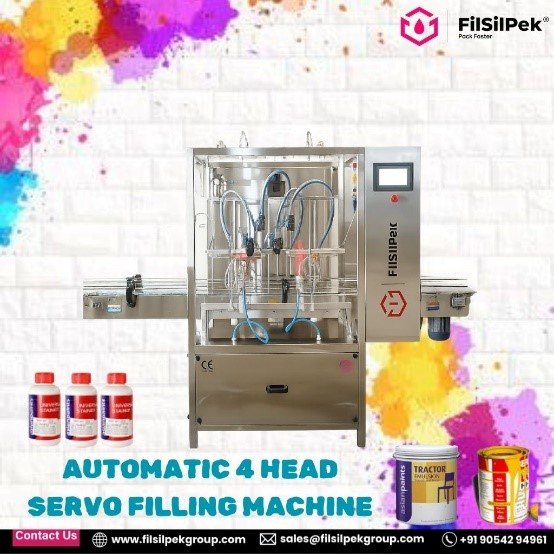

Automatic 4 Head Servo Filling Machine
Pack Size : 100 ml to 5 Liters (Adjustable via HMI)
Output : 30 to 60 Bottles/Minute (Depending on fill volume)
Accuracy : +/- 0.5% to 1%
Technology : Servo Motor Driven (Gear Pump or Piston) with PLC & Touchscreen Control
Watch Video

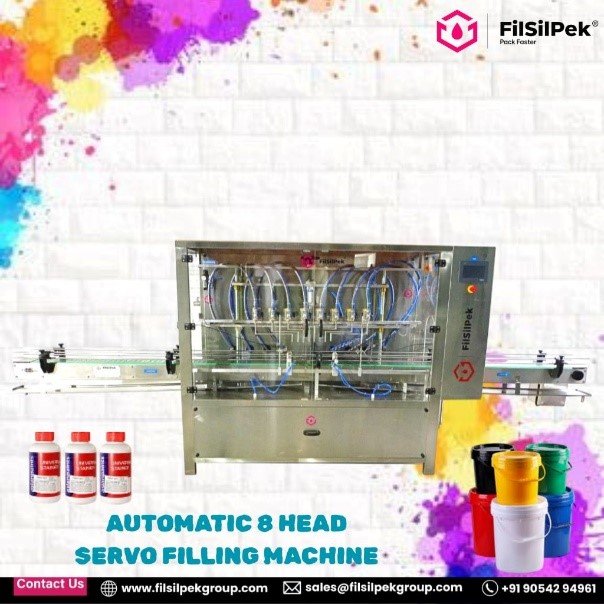

Automatic 8 Head Servo Filling Machine
Pack Size : 100 ml to 5 Liters (Scalable to 10L with change parts)
Output : 40 to 80 Bottles/Minute (Depends on viscosity & volume)
Accuracy : +/- 0.5% to 1% (Servo Driven Precision)
Technology : Servo Motor Controlled Volumetric Piston / Gear Pump
Watch Video

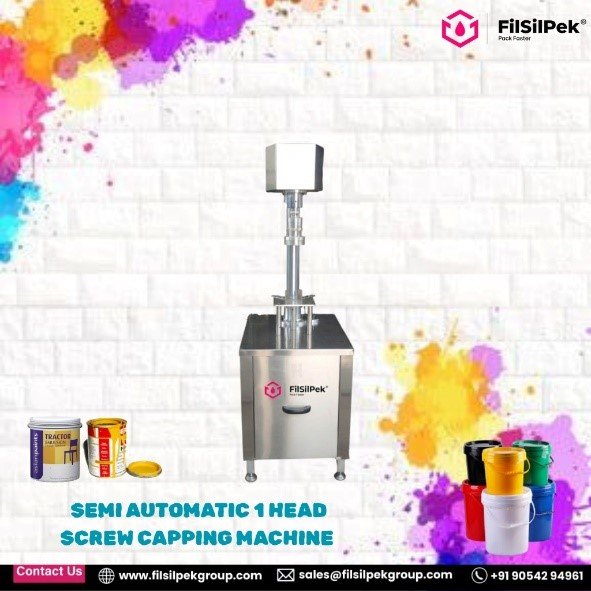

Semi Automatic 1 Head Screw Capping Machine
Pack Size : 100 ml to 5 Liters (Bottle/Can Diameter 25mm – 100mm)
Output : 20 to 40 Bottles/Minute (Depends on operator speed)
Accuracy : Adjustable Torque / Sealing Efficiency >98%
Technology : Motorized Rotating Head with Magnetic/Friction Torque Control
Watch Video

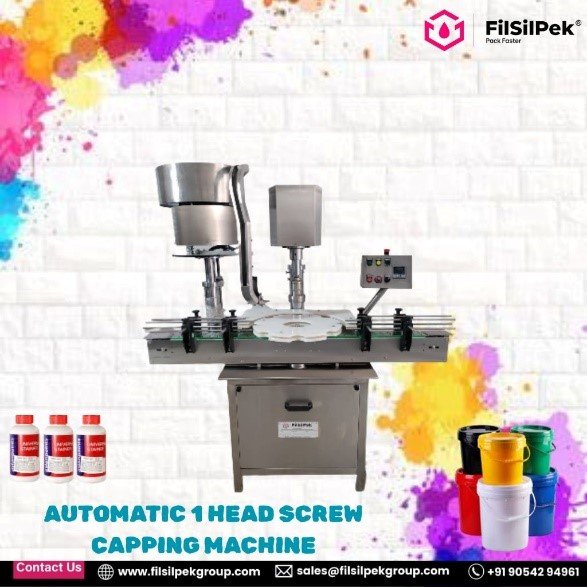

Automatic 1 Head Screw Capping Machine
Pack Size : Bottle Diameter: 22mm to 100mm | Height: 35mm to 240mm
Output : 20 to 50 Bottles/Minute (Depends on container size)
Accuracy : Precise Torque Control (Magnetic/Mechanical) with "No Bottle - No Cap" Safety
Technology : Single Head Rotary / Pick & Place with Adjustable Magnetic Torque Head
Watch Video

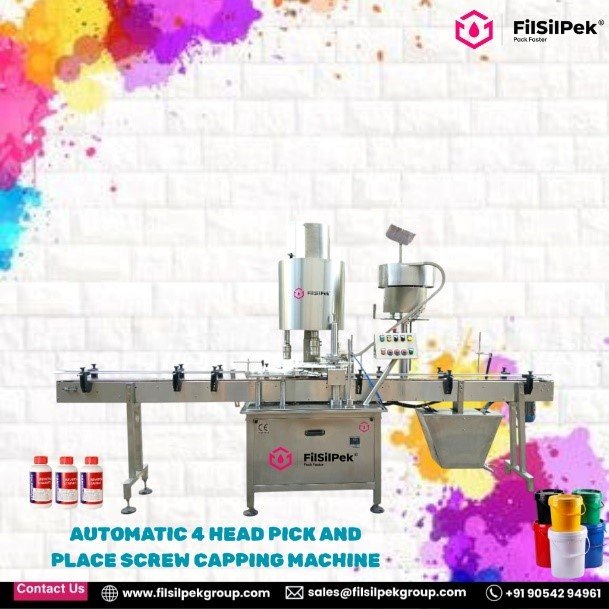

Automatic 4 Head Pick & Place Screw Capping Machine
Pack Size : 100 ml to 1 Liter (Bottles / Jars)
Output : 60 to 80 Containers/Minute
Accuracy : Torque Accuracy +/- 2% (Magnetic Hysteresis / Servo)
Technology : Rotary Pick & Place with Adjustable Torque Heads
Watch Video

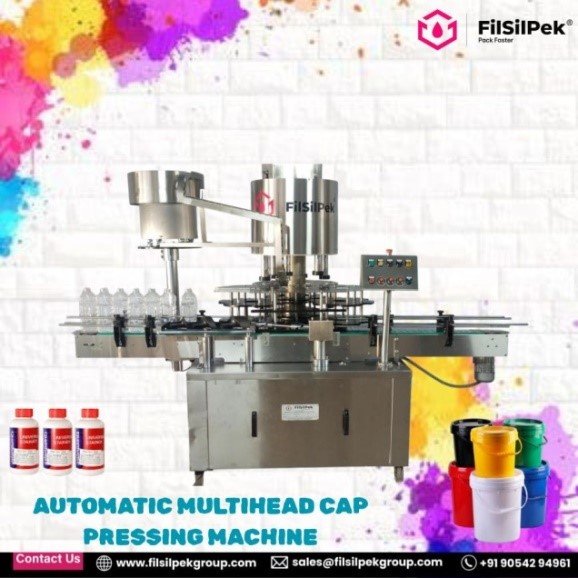

Automatic Multihead Cap Pressing Machine
Application: For Press-Fit, Snap-On, Flip-Top, and Inner Plug caps (Edible Oil, Cosmetics, Pharma).
Speed: 60 to 200 Bottles/Minute.
Heads: 4, 6, 8, or 12 Heads (Rotary System)
Safety: Overload clutch on star wheels to prevent bottle jamming
Watch Video

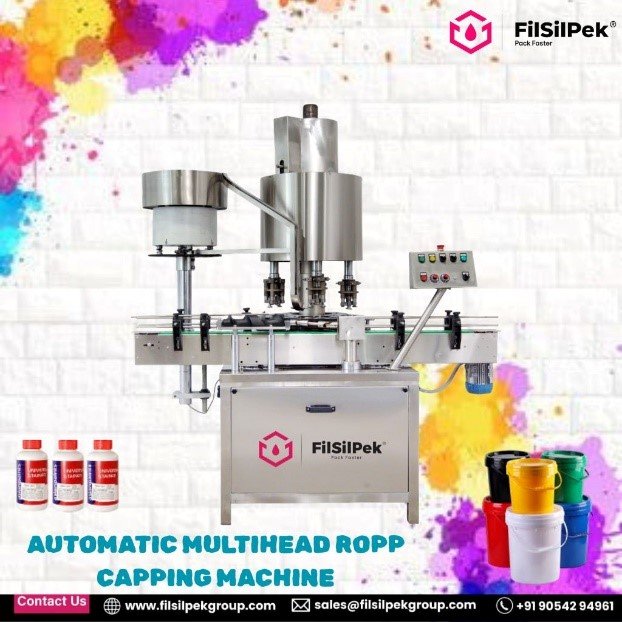

Automatic Multi-Head ROPP Capping Machine
Bottle Diameter: 22 mm to 100 mm (Round) / Variable for Flat or Square
Bottle Height: 40 mm to 240 mm (Height adjustment available)
Cap Size (ROPP): 18 mm to 38 mm (Standard) / Up to 50+ mm (Optional)
4 Head: 80 to 120 Bottles/Minute
Watch Video

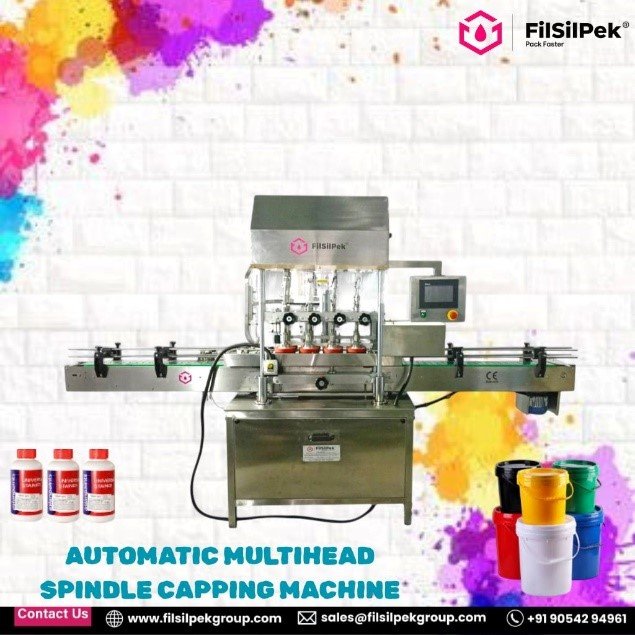

Automatic Multlhead Spindle Capping Machine
Pack Size : 100 ml to 5 Liters (Scalable to 20L)
Output : 60 to 150 Bottles/Minute (Depends on number of Spindle Wheels)
Accuracy : Adjustable Torque / +/- 1% Application Rate
Technology : Multi-Stage Spinning Discs (Spindles) with Gripper Belts
Watch Video

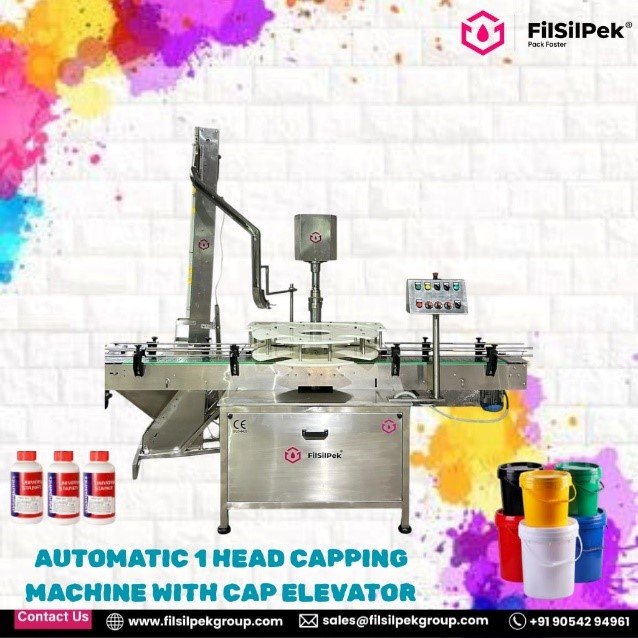

Automatic 1 Head Capping Machine (with Elevator)
Pack Size : 100 ml to 5 Liters (Bottles / Jars / Small Cans)
Output : 30 to 50 Bottles/Minute
Accuracy : Adjustable Torque / "No Bottle - No Cap" Safety
Technology : Single Head Screw or ROPP Capping with Automatic Cap Elevator (Waterfall/Vibratory Feeder)
Watch Video

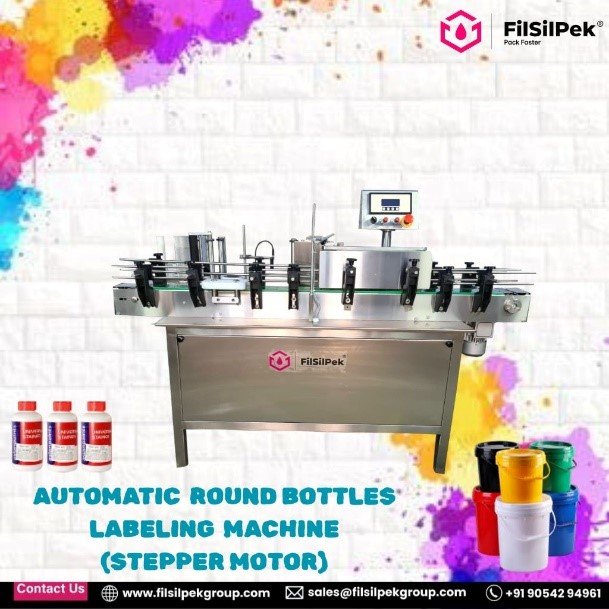

Automatic Round Bottle Labeling Machine (Stepper Motor)
Pack Size : Diameter 25 mm to 120 mm (50ml to 1 Liter approx.)
Output : 40 to 80 Bottles/Minute (Depends on label length)
Accuracy : +/- 1 mm
Technology : Automatic Stepper Motor Label Dispensing (Wrap Around)
Watch Video

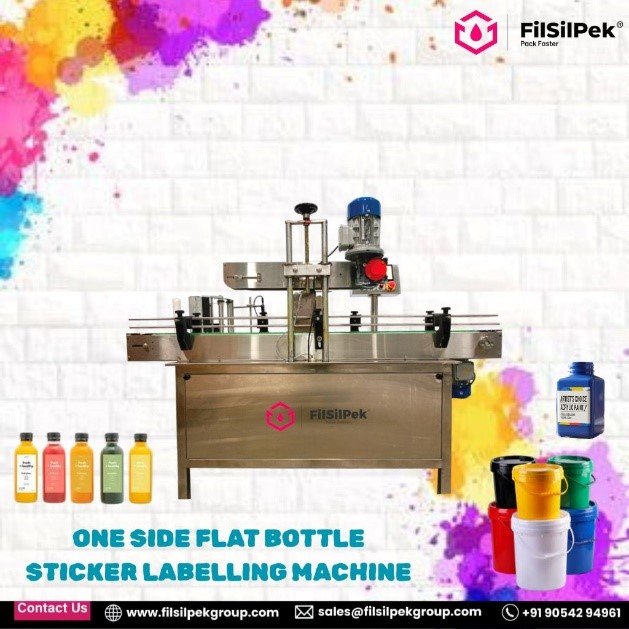

One Side Flat Bottle Labeling Machine
Pack Size : 100 ml to 2 Liters (Flat / Square / Oval)
Output : 60 to 120 Bottles/Minute
Accuracy : +/- 1 mm
Technology : Servo or Stepper Motor with Automatic Label Length Detection
Watch Video

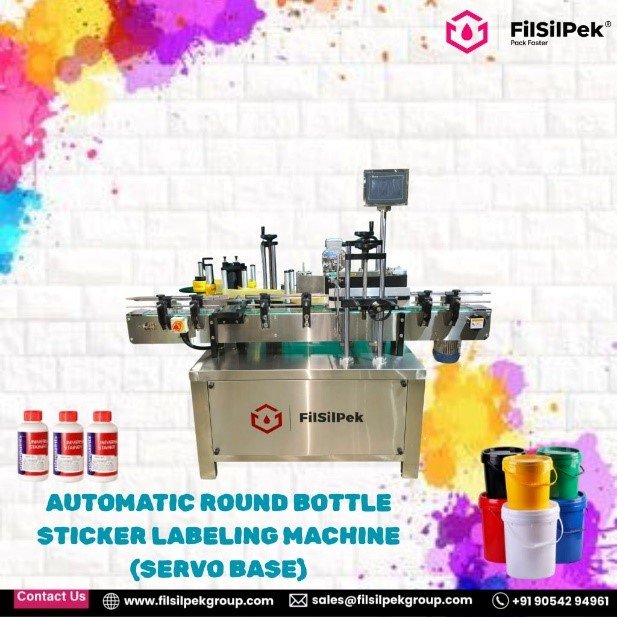

Automatic Round Bottle Sticker Labeling (Servo) Machine
Pack Size : Diameter 25mm to 100mm (Height up to 240mm)
Output : 60 to 80 Bottles/Minute (Up to 150 BPM High Speed)
Accuracy : +/- 1 mm (Servo Controlled)
Technology : Servo Motor Dispenser with PLC & HMI (Wrap Around)
Watch Video

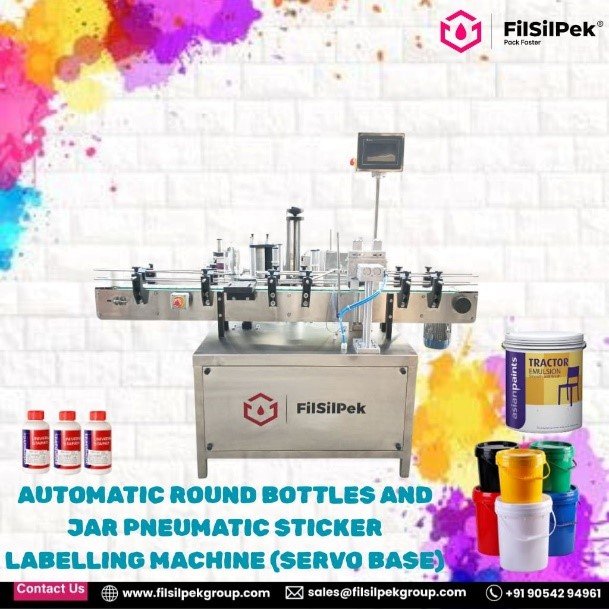

Automatic Round Bottles and Jar Pneumatic Sticker Labelling Machine
Diameter: 20 mm to 120 mm (Standard Round Bottles/Jars)
Height: 30 mm to 240 mm
Speed: 20 to 50 Containers/Minute (Dependent on label length & product diameter)
Capacity: Up to 3,000 Bottles/Hour
Watch Video

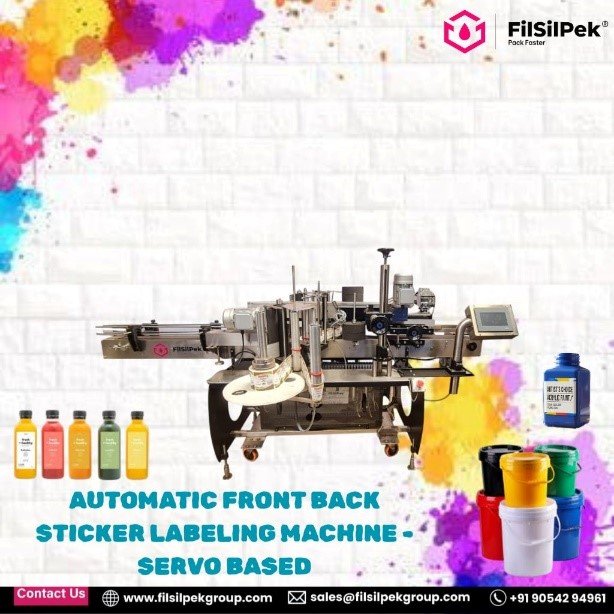

Automatic Front & Back Labeling (Servo)
Pack Size : Flat, Oval, Square, or Round Containers (50 ml to 5 Liters)
Output : 60 to 150 Containers/Minute (Speed depends on label length)
Accuracy : +/- 1 mm Placement Accuracy
Technology : Twin Head Servo Applicator with Top Hold Stabilization & PLC Control
Watch Video
